Mackinaw City Corridor Study

Mackinaw City Corridor Study

Mackinaw City

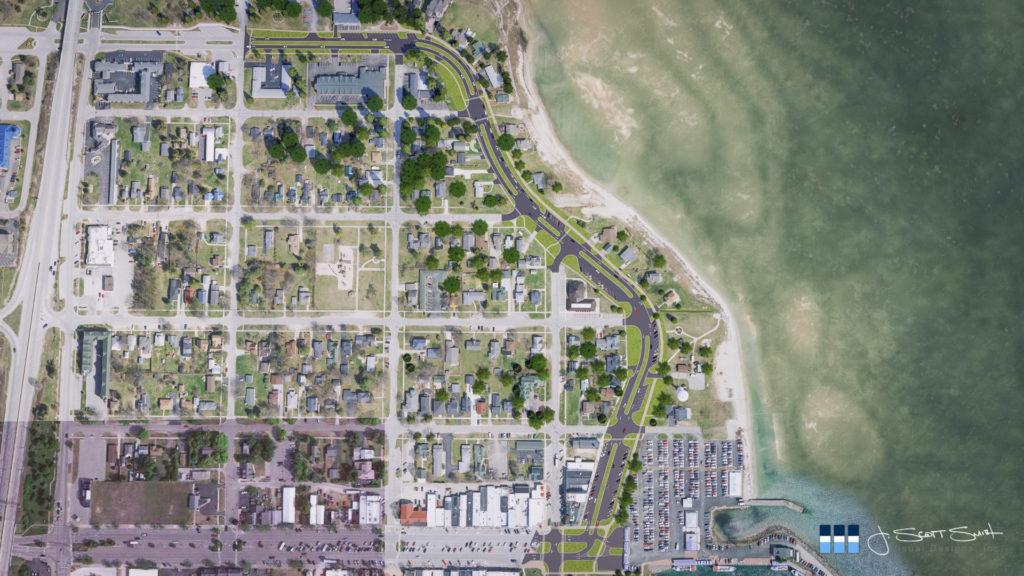

This was a very conceptual model we created for the village to evaluate two different proposed road alignments. These views end up being much easier to relate to than engineering plans. To keep the schedule and the cost easy, we simply showed the road concepts on top of provided orthophotos for location reference. The extents of the proposed improvements are primarily limited to the road right-of-way, but we added some 3D components in the area such as cars, trees and the Mackinac Bridge for scale and visual reference.

18-008
